Installation

1

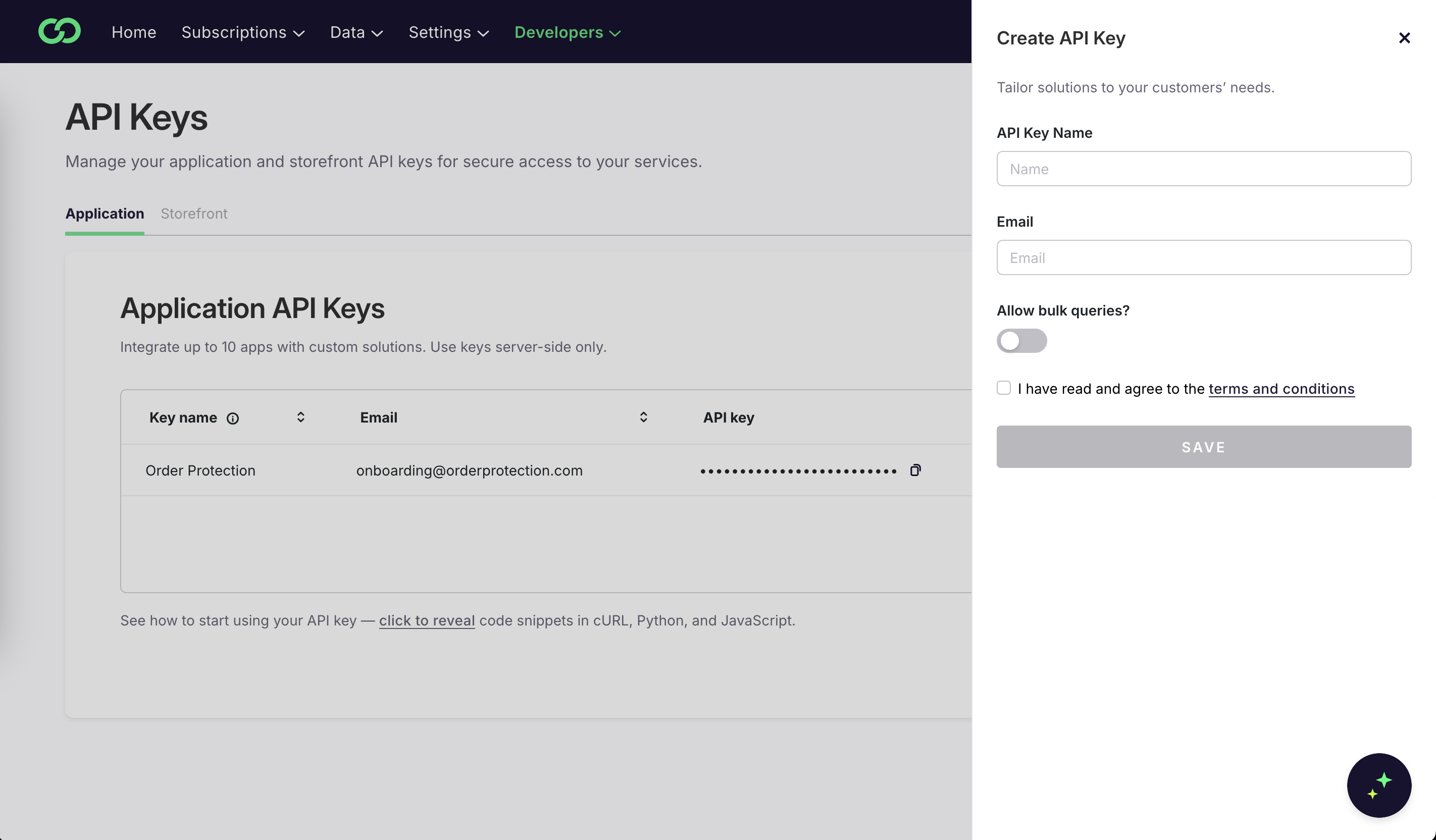

Generate an API Token

Access the Ordergroove admin page: Ordergroove Admin
  • Go to Developers menu and click on API Keys
  • Click on Create button
  • Enter a Name and Email
    • Name: Order Protection
    • Email: onboarding@orderprotection.com
    • Allow bulk queries?: Yes
  • Click on Save button
  • Copy the API Key for Step 3
API Token
2

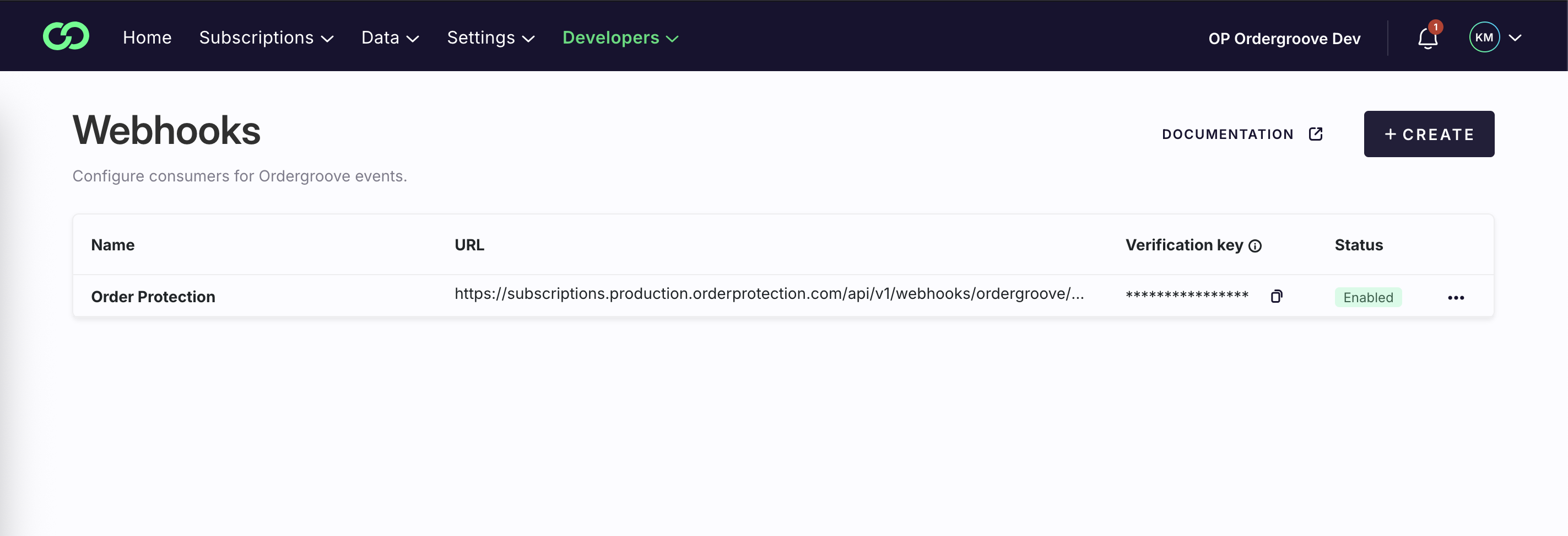

Create a Webhook

Since Ordergroove does not have a way to automate the creation of webhooks, we will need to create them manually.
  • Go to Developers menu and click on Webhooks
  • Click on Create button
  • Enter a Name and Email
    • Webhook Name: Order Protection
    • Webhook URL: https://subscriptions.production.orderprotection.com/api/v1/webhooks/ordergroove/[PLATFORM_DOMAIN]/webhook
      • Replace [PLATFORM_DOMAIN] with your platform domain. e.g. for Shopify it would be example.myshopify.com

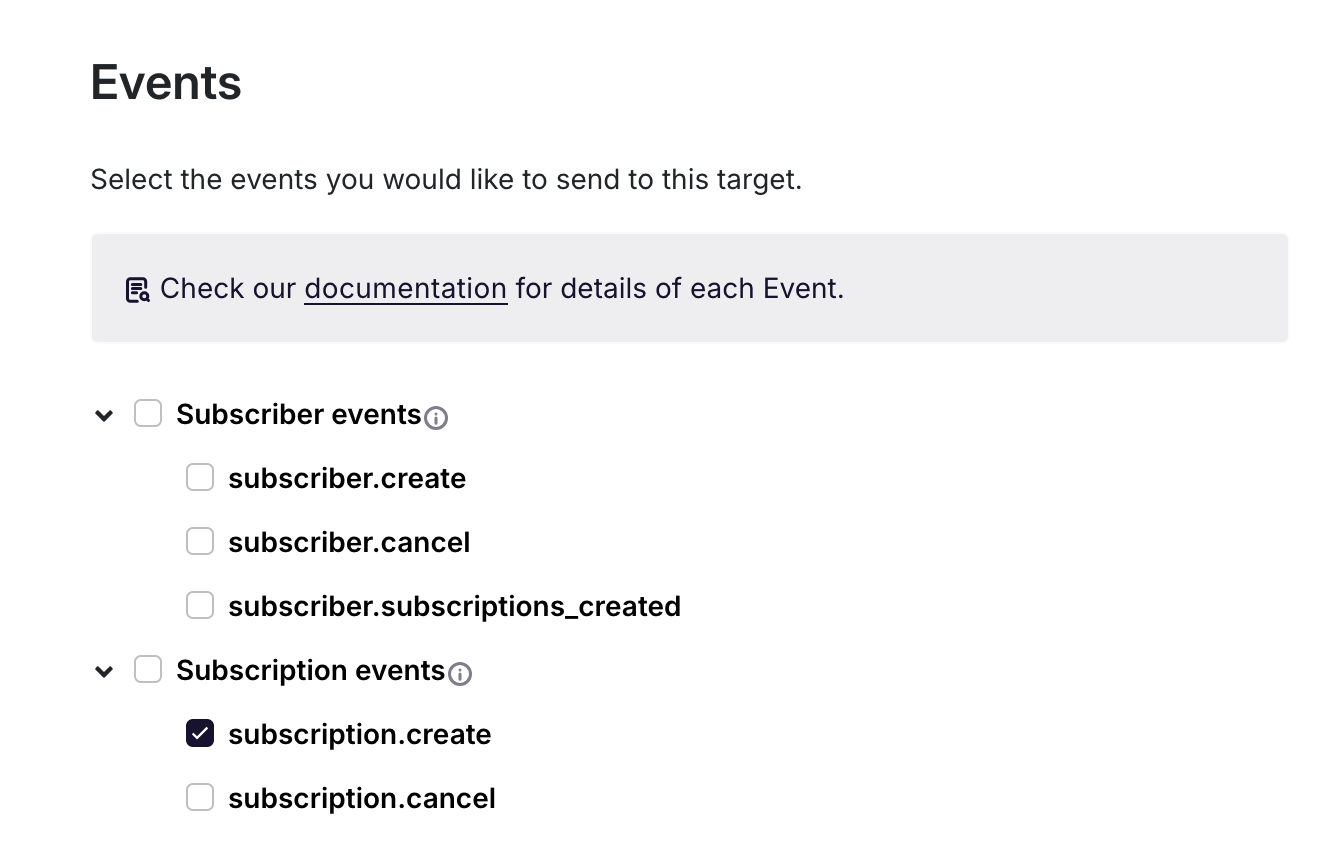

  • For events, tick only subscription.create
    • Note: there is a similar event called subscriber.create, please note to tick the correct one Webhook
  • No actions on Advance Settings
  • Click on Save button
  • Copy the Verification Key for Step 3
Webhook
3

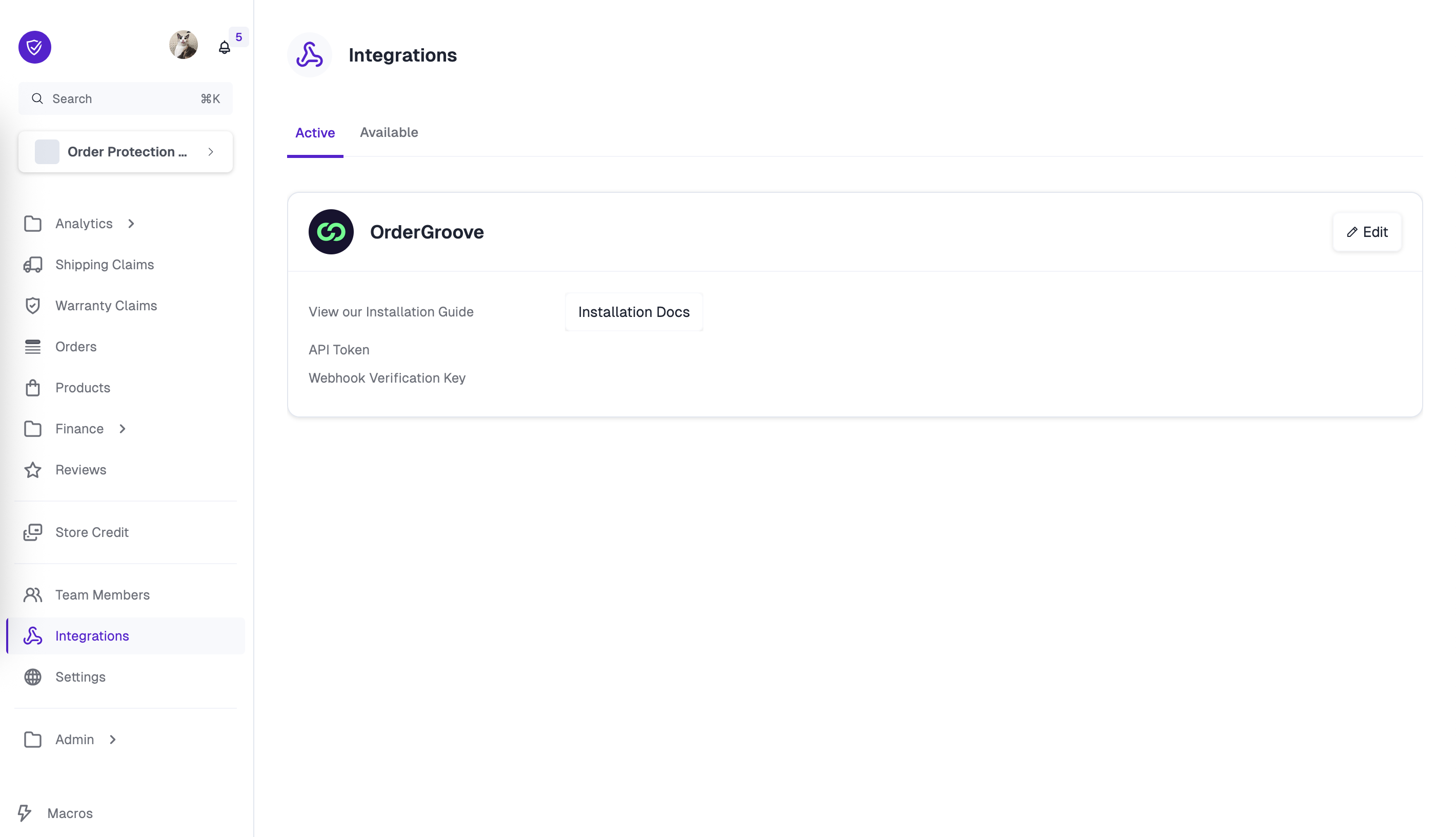

Integrate Ordergroove within the Order Protection Platform

Within the Order Protection app, do the following:
  • Navigate to Integrations in the left navigation.
  • Find the Ordergroove block under the Available tab.
  • Take the API token you created in Step 1 and the Webhook Verification Key you created in Step 2 and add it to the corresponding fields and save.
  • Once saved, click on the Active tab and the API token and Webhook Verification Key fields within the Ordergroove block will have a hidden value. This means that your token and webhook successfully uploaded. ordergroove api token in op app
4

Install Scripts in Ordergroove's Subscription Manager

  • Go to Subscriptions menu and click on Subscription Manager
  • Click on Advanced toggle button
  • On the side menu, click on View
  • Click on ADD NEW FILE, and name it orderprotection.liquid with content:
    orderprotection.liquid
    {# required non-null: order, subscriptions, addresses, current_order_items #}
    <div style="padding-left: 12px; padding-right: 12px;">
      <div id="order-protection-{{ order.public_id }}"></div>
    </div>
    {{ 'bootstrapOrderProtection({ order, subscriptions, addresses, current_order_items })' | js }}

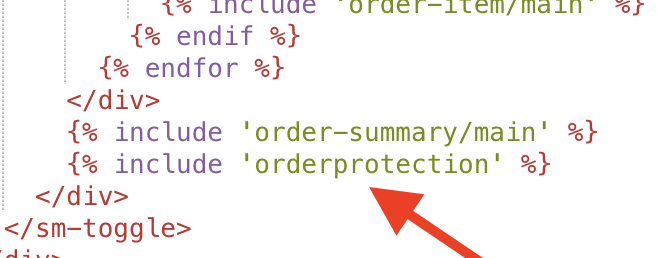

  • Go to /views/order/main.liquid, enter new line after {% include 'order-summary/main' %} and add:
    order/main.liquid
    `{% include 'orderprotection' %}`

    Like below: Paste code
  • Go to /views/order-level-actions/send-order-now.liquid and change the button:
    order-level-actions/send-order-now.liquid
    <button class="og-button" type="submit" name="send_now">{{ 'modal_send_now_save' | t }}</button>

    to:
    order-level-actions/send-order-now.liquid
    <button class="og-button" type="button" @click="{{ 'orderProtectionSendNow' | js }}" data-order-id="{{ order.public_id }}">
      {{ 'modal_send_now_save' | t }}
    </button>

  • Lastly, go to /scripts/script.js and add the following code to the bottom of the file:
    script.js
    /*
    * BEGIN ORDERPROCTION ORDERGROOVE MANAGER
    */

    /* Environment variables */
    const OP_CORE_CSS_URL = 'https://cdn.orderprotection.com/widget/core/latest/style.css';
    const OP_SCRIPT_URL = 'https://cdn.orderprotection.com/widget/subscriptions/latest/orderprotection.js';
    const OP_DEBUG = true;
    const OP_LOG_PREFIX = '[OP]';
    const OP_MAX_RETRIES = 5;

    /* State variables */
    let opScriptLoaded = false;
    const opWidgets = [];

    /* Utilities */
    function opLog(...message) {
      if (OP_DEBUG) console.log(OP_LOG_PREFIX, ...message);
    }

    function opDelay(ms) {
      return new Promise(resolve => setTimeout(resolve, ms));
    }

    function opCreateCurrencyFormatter() {
      const formatter = new Intl.NumberFormat(undefined, {
        style: 'currency',
        currency: window.Shopify.currency.active,
      });
      const symbol = formatter.formatToParts(1).find(p => p.type === 'currency').value;
      return {
        format: cents => formatter.format(cents / 100),
        symbol,
      };
    }

    function opQuerySelector(orderId, selector) {
      return document.querySelector(`.og-content-wrapper[data-order-id="${orderId}"] ${selector}`);
    }

    function opCreateElement(tag, attrs = {}, children = []) {
      const el = document.createElement(tag);
      Object.assign(el, attrs);
      el.append(...children);
      return el;
    }

    function opCreateCostBreakdownItem(label, value) {
      return opCreateElement('div', { className: 'op-cost-breakdown-item' }, [
        opCreateElement('dt', { textContent: label }),
        opCreateElement('dd', { className: 'og-text-align-right', textContent: value }),
      ]);
    }

    function opOnWidgetToggledHandler(orderId) {
      const opWidget = window.orderProtection?.[orderId];
      if (!opWidget || !opWidget.cart.subtotal || !opWidget.price) return;

      const { format, symbol: currency } = opCreateCurrencyFormatter();
      const total = opWidget.enabled ? opWidget.cart.subtotal + opWidget.price : opWidget.cart.subtotal;
      const formattedTotal = format(total);

      // Update price heading
      const priceHeadingEl = opQuerySelector(orderId, '.og-summary-heading.og-price-heading');
      if (priceHeadingEl) {
        priceHeadingEl.textContent = formattedTotal;
      } else {
        opLog('priceHeading not found:', orderId);
      }

      // Update total element
      const totalEl = opQuerySelector(orderId, '.og-total');
      if (totalEl) {
        totalEl.childNodes.forEach(child => {
          if (child.textContent.includes(currency)) {
            child.textContent = formattedTotal;
          }
        });
      } else {
        opLog('totalEl not found:', orderId);
      }

      // Update subtotal element
      const subtotalEl = opQuerySelector(orderId, 'dd[data-testid="order-sub-total"]');
      const items = opWidget.cart.preexistingData?.current_order_items ?? [];
      const products = window?.og?.smi?.store?.getState()?.products ?? [];
      const subTotalWithoutOp = items.reduce((sum, i) => {
        const product = products.find(p => p.external_product_id === i.product);
        if (product?.name?.startsWith('Order Protection')) return sum;
        return sum + (+i.total_price || 0) * 100;
      }, 0);
      if (subtotalEl && subTotalWithoutOp) {
        subtotalEl.textContent = format(subTotalWithoutOp);
      } else {
        opLog('subtotalEl not found:', !!subtotalEl, subTotalWithoutOp, orderId);
      }

      // Update cost breakdown
      const costBreakdownEl = opQuerySelector(orderId, 'div.og-cost-breakdown > dl');
      if (costBreakdownEl) {
        const existingItem = costBreakdownEl.querySelector('.op-cost-breakdown-item');

        if (opWidget.enabled && !existingItem) {
          const item = opCreateCostBreakdownItem('Shipping Protection', format(opWidget.price));
          costBreakdownEl.appendChild(item);
        }

        if (!opWidget.enabled) {
          costBreakdownEl.querySelectorAll('.op-cost-breakdown-item').forEach(el => el.remove());
        }
      } else {
        opLog('costBreakdownEl not found:', orderId);
      }
    }

    /* Load assets */
    function opLoadAsset({ tag, attrs, parent = document.head }) {
      return new Promise((resolve, reject) => {
        const el = Object.assign(document.createElement(tag), attrs, {
          onload: () => resolve(el),
          onerror: reject,
        });
        parent.appendChild(el);
      });
    }

    Promise.all([
      opLoadAsset({ tag: 'link', attrs: { rel: 'stylesheet', href: OP_CORE_CSS_URL } }).then(() =>
        opLog('Core CSS loaded:', OP_CORE_CSS_URL),
      ),
      opLoadAsset({ tag: 'script', attrs: { src: OP_SCRIPT_URL }, parent: document.body }).then(() => {
        opScriptLoaded = true;
        opLog('script loaded:', opScriptLoaded);
      }),
    ]);

    /* Functions */
    // Bootstrap Order Protection, for use in the liquid template
    function bootstrapOrderProtection(params) {
      initOrderProtectionWidget(params);

      return '';
    }

    // Initialize the Order Protection widget
    async function initOrderProtectionWidget(params, retries = 0) {
      const { order } = params;

      // Check if the script has loaded
      if (!opScriptLoaded) {
        if (retries >= OP_MAX_RETRIES) {
          opLog('Script failed to load after max retries:', order.public_id);
          return;
        }
        await opDelay(300);
        opLog('Script not loaded, retrying...', order.public_id);

        return initOrderProtectionWidget(params, retries + 1);
      }
      if (opWidgets.some(widget => widget.subscription === order.public_id)) {
        return opLog('Already bootstrapped:', order.public_id);
      }

      opLog('Bootstrapping Order Protection for subscription:', order.public_id);

      // Create the Order Protection widget
      const opWidget = OrderProtection.createOrderProtectionWidget({
        instanceName: order.public_id,
        integration: 'ordergroove',
        attach: true,
        debug: OP_DEBUG,
        locations: [{ id: `order-protection-${order.public_id}` }],
        version: 'v2',
        preexistingData: params,
      });

      opWidget.cart.debug = OP_DEBUG;
      opWidget.widget.on('toggled', () => opOnWidgetToggledHandler(order.public_id));

      opWidgets.push({ subscription: order.public_id });

      // Wait for the cart to be ready, for final setup and initialization
      try {
        while (!opWidget.cart.isReady()) {
          opLog(order.public_id, 'Cart not ready, retrying...');
          opWidget.cart.subscription = {};
          await opWidget.cart.loadSubscription();
          await opDelay(500);
        }

        opWidget.cart.setup();
        await opWidget.init();
      } catch (error) {
        console.error(error);
      }
    }

    async function orderProtectionSendNow(e) {
      opLog('OP Send Now called');

      const btn = e?.currentTarget;

      if (!btn) {
        opLog('missing required parameters: btn');
        return;
      }

      const dialog = btn.closest('dialog');
      const orderId = btn.dataset.orderId || dialog?.querySelector('input[name="order"]')?.value;
      const opWidget = orderId ? window.orderProtection?.[orderId] : null;

      if (!dialog || !orderId || !opWidget) {
        opLog(`missing required parameters: dialog: ${!!dialog}, orderId: ${!!orderId}, opWidget: ${!!opWidget}`);
        return;
      }

      // UX: disable to prevent double-clicks
      const btnText = btn.textContent;
      btn.disabled = true;
      btn.textContent = 'Loading...';

      try {
        // 1) Sync the Order Protection item to the cart
        await opWidget.cart.syncOpItem();

        const getAuthorizationHeader = () => {
          const { public_id, sig_field, ts, sig } = og.smi.store.getState().customer;

          return JSON.stringify({ public_id, sig_field, ts, sig });
        };

        // 2) Send the order now via Ordergroove REST API
        const response = await fetch(`https://restapi.ordergroove.com/orders/${orderId}/send_now/`, {
          method: 'PATCH',
          headers: {
            'Content-Type': 'application/json',
            Authorization: getAuthorizationHeader(),
          },
        });

        if (!response.ok) {
          throw new Error(`Failed to send order now: ${response.statusText}`);
        }

        // 3) Close modal + refresh state so UI updates (order moves to processing)
        dialog.close();
        await window.og.smi.refresh_page_state();
      } catch (err) {
        console.error(err);
      } finally {
        btn.disabled = false;
        btn.textContent = btnText;
      }
    }

    /*
    * END ORDERPROCTION ORDERGROOVE MANAGER
    */

Once set up, Order Protection will be added to all cart instances within Shopify subscription orders using Ordergroove. Customers can choose to opt-in or opt out of Order Protection for their subscription orders.
Customers will be able to file/edit claims per your normal store settings once an order confirmation email has been sent.
